Declare Trigger Rule in Pega

Hi Friends, today we will see the use of declare trigger rule in Pega.

I have a class TGB-HRApps-Work-Candidate, In this class I have created some cases(C-1,C-2 and etc..).

If Anyone delete any case(assume C-1)  I wants to see information like operator who deleted the case and pzInsKey of the case.

How we can achieve this?

We can configure declare trigger rule , which will trigger whenever a instance is delete in the class.

In  trigger activity we can add steps to save those details.

Lets do this practically

In below image we can see the list of case id available in candidate class.

.

In the same class I am creating a Declare trigger rule.

From the list of option available , I am selecting Commited Save so whenever I am doing delete and commit this declare trigger rule(MonitorDelete) will trigger.

When try to save a error message displayed . It is mentioning that Trigger activity is not of type trigger.

    Updated the activity type to trigger.

Now can able to save the rule.

Created a data class to store the deletion details.

Created 3 properties in this class.

Click on the below highlighted button to create local table .

Added Key for class.

So lets configure the trigger activity steps. Below is the list of steps in the activity.

Pages and class tab:

In the property-Set added the data to save to table.

In the first step we are checking whether pxInsKey has values are not. If it has values then only we are allowing to execute the activity.

Lets check the work we have done.

Created a sample activity to delete the instance.

Ran this activity and traced it.

In the above image you can able to see the declare trigger was triggered on the deletion and its activity got executed.

In the table you can able to view who deleted and which pzInskey got deleted .

Thank you for reading this post.  If you have any doubts please ask in comment.

Reference:

Pega help file:

https://community.pega.com/sites/default/files/help_v83/procomhelpmain.htm#rule-/rule-declare-/rule-declare-trigger/trigger.htm

How to Create a new Operator ID using Activity

Hi Friends, today we will see how to create an operator id using an activity in pega.

Pega has builtin activity named CreateOperator  . This activity has some parameters that is required to create operator id we have to provide those values.

Lets see how to do that.

Created a simple flow, in the first assignment we are getting personal information. In the utility we are generating operator id.

We need to save as Pega built in activity CreateOperator to our application ruleset with different name because this activity has availability Final

And also we have to remove the last 2 steps (show-property) after saved as the activity to our ruleset.

Saved as the activity to my ruleset and changed the name. In the below image you can see I removed two show-property methods.

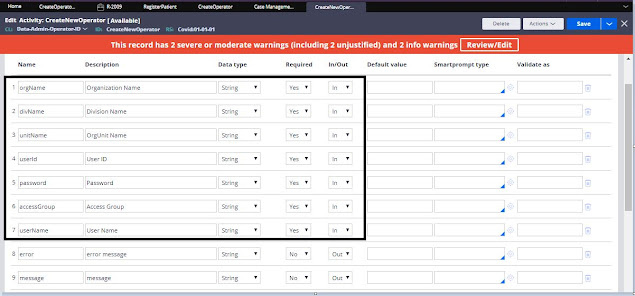

Parameters required to this activity:

We have to provide all the required parameters.

Created another activity in that I have set all the required parameters below that called the CreateNewOperator activity.

For the CreateNewOperator activity I have enabled Pass current parameter check box so that all the parameters in this steps will flow into that activity.

Above activity is the utility that I have called after the assignment in the flow.

Lets run the case and check.

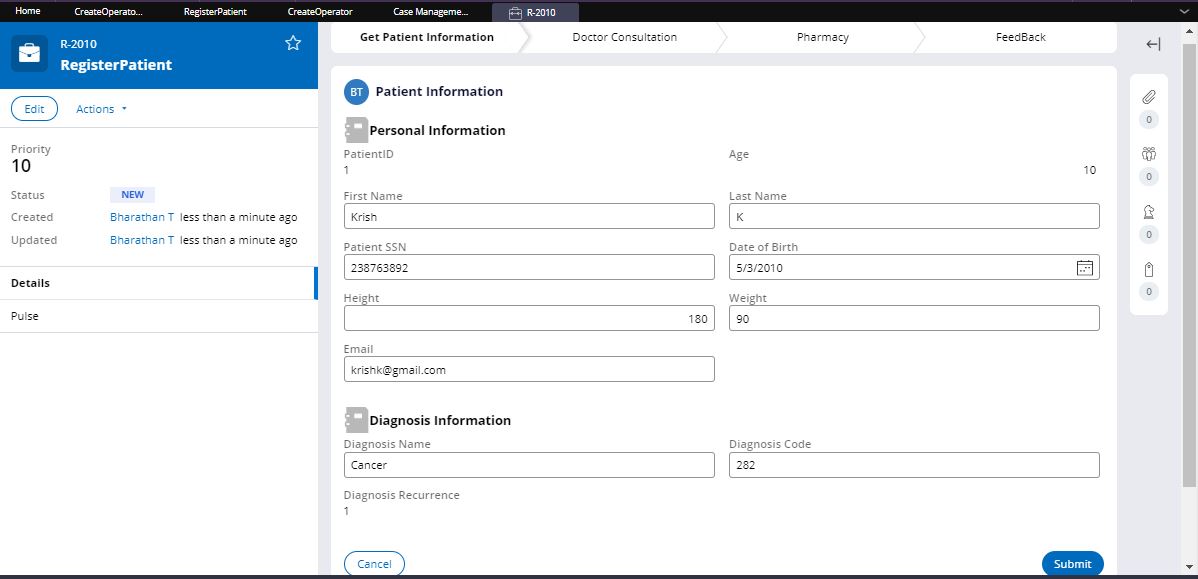

Provided all the details in the first assignment.

First assignment got completed.

So lets check operator id has created or not

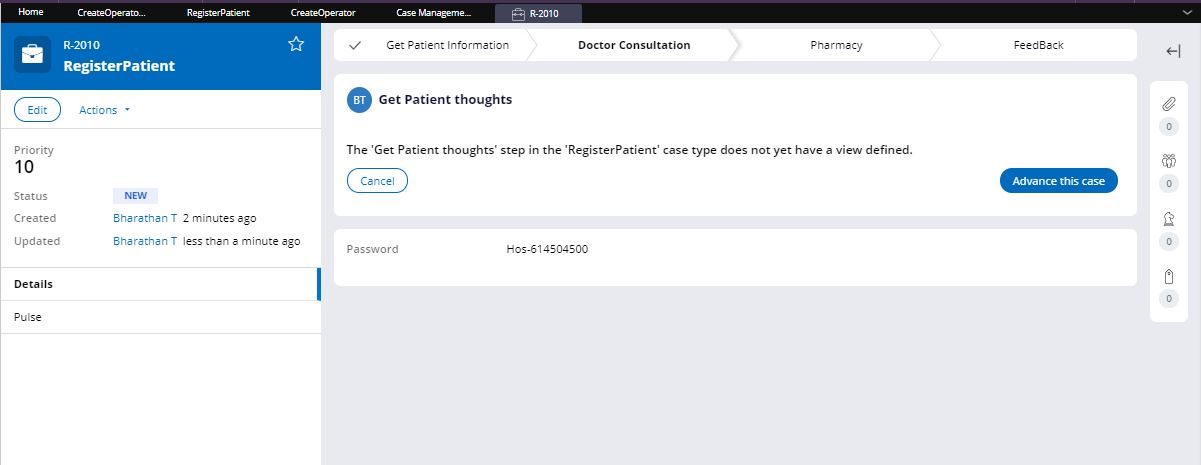

Operator Id Created!

Thank you guys for reading , Ask in comment if you have any doubts.
